Get Raspberry Pi PICO Running on RT-Thread RTOS with an Opensource Light Versatile Graphics Library

Hardware:

• Raspberry Pi PICO
• TFT-SPI ST7789
  - Single chip TFT-LCD Controller/Driver with On-chip Frame Memory (FM)
  - Display Resolution: 240*RGB (H) *320(V)
  - Frame Memory Size: 240 x 320 x 18-bit = 1,382,400 bits
  - LCD Driver Output Circuits
  - Source Outputs: 240 RGB Channels
  - Gate Outputs: 320 Channels
  - Common Electrode Output

Software:

• Opensource RT-Thread IoT OS Project
• RT-Thread Studio IDE (Free)
• Opensource LVGL Project

Add LVGL Software Package

• Double-click RT-Thread Settings to enter the configuration page.

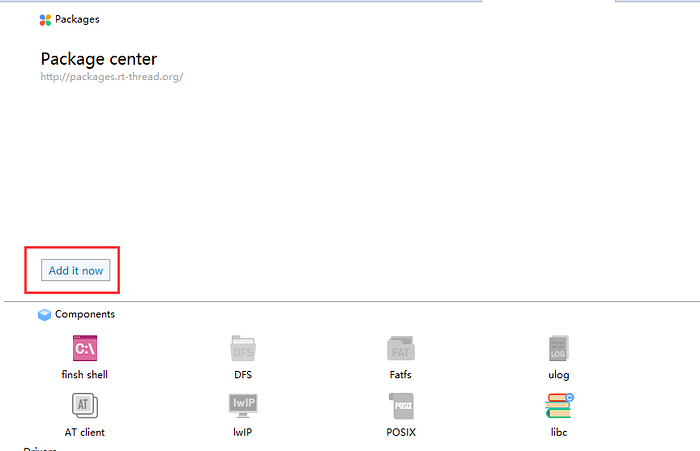

• Click Add it now

• Choose the packages of LVGL and lv_music_demo

Enable LVGL for LCD

Configure Screen Parameter

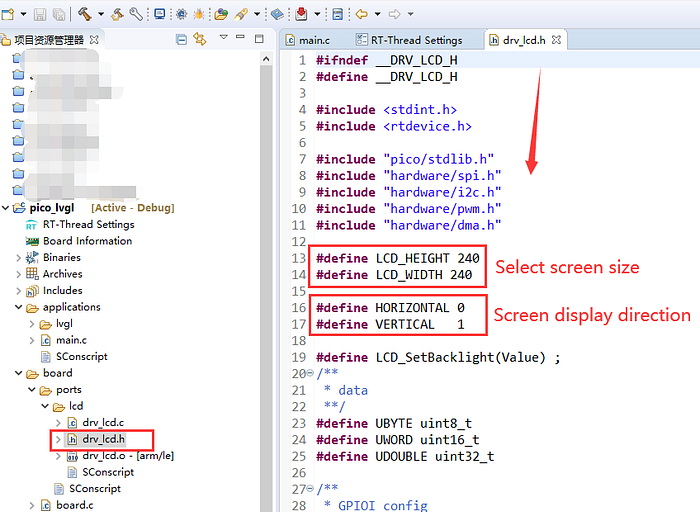

Select the screen size according to your project requirements (This tutorial is using ST7789).

LVGL Display Interface Adopting

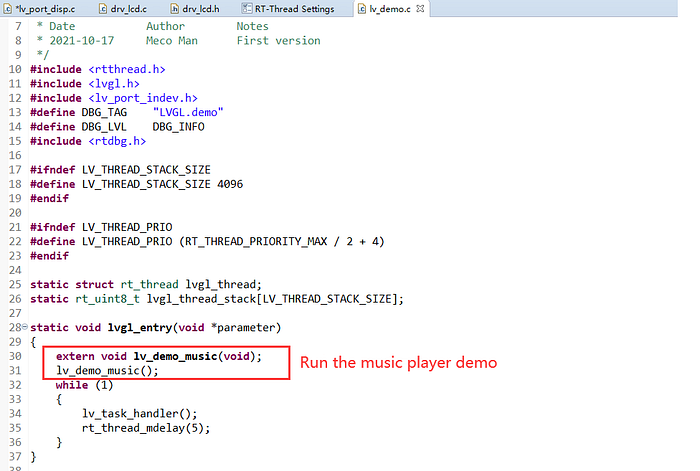

Presentation
