Getting Started with Raspberry Pi PICO in RT-Thread Studio IDE.

Raspberry Pi PICO is now available in RT-Thread Studio IDE! Looking to make Raspberry Pico development simple and all in one-stop.

RT-Thread is an open-source embedded real-time operating system (RTOS) that provides a wide range of components and 290+ software packages for the Internet of Things (IoT). RT-Thread Studio IDE is built by the RT-Thread team and it takes full advantage of RT-Thread software packages and a wide range of components resources. All of this offers a way for developers to simplify the complexity of software development.

Walk through this tutorial get started with Raspberry Pi PICO in RT-Thread IDE.

RT-Thread Studio

Download PICO SDK

  1. Click SDK Manager:
Image for post
Image for post

2. Download PICO BSP(Board Supported Package). Select v1.0.3.

Image for post
Image for post

Create PICO Project

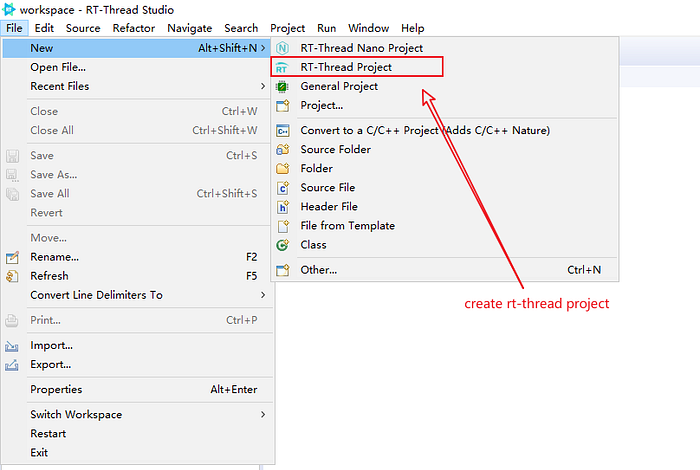

  1. Create RT-Thread project:
Image for post
Image for post

2. Select PICO

Image for post
Image for post

3. Click Finish, successfully created project.

Compile and Download

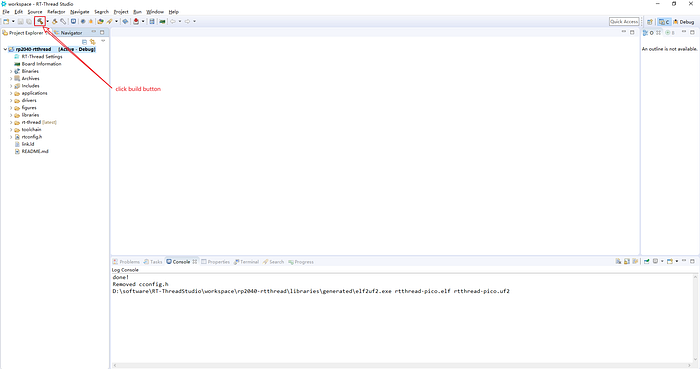

  1. Click build to compile the project:
Image for post
Image for post

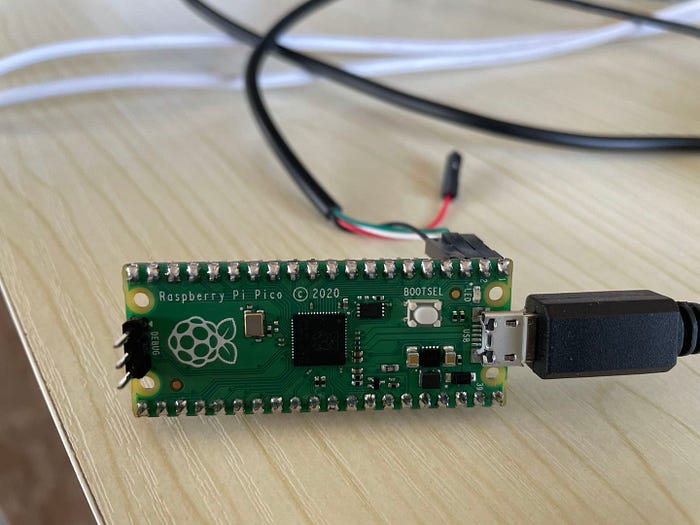

2. Press the BOOTSEL in the board, plug in the USB cable and serial cable:

Image for post
Image for post

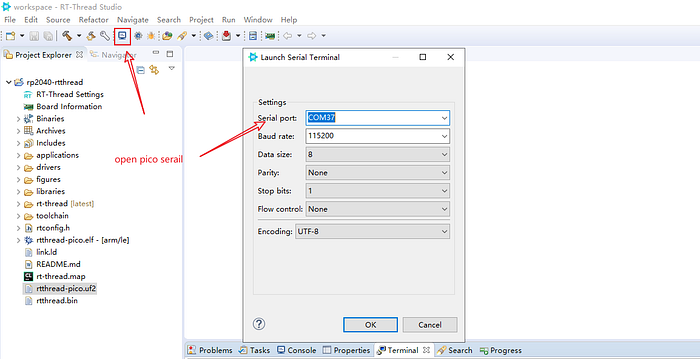

3. Open Serial Terminal Assistant in Studio:

Image for post
Image for post

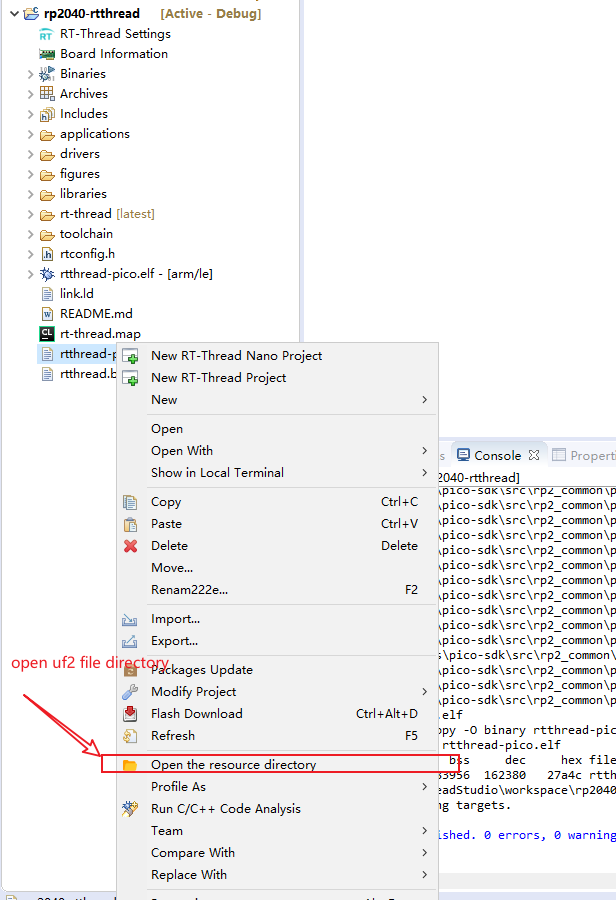

4. Open the rtthread-pico.uf2 belonging category:

Image for post
Image for post

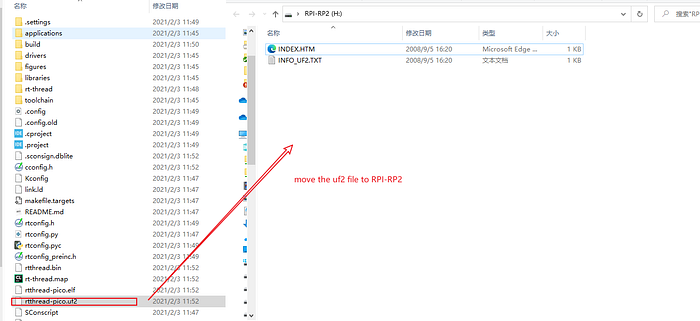

5. Download uf2 to PICO board:

Image for post
Image for post

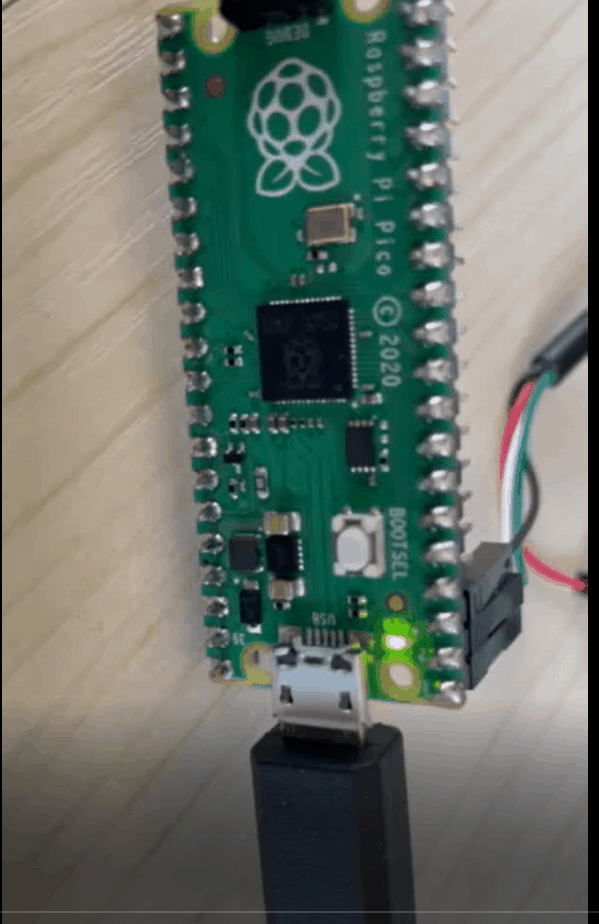

6. Successfully downloaded, we’ll see the LED is flashing.

Image for post
Image for post

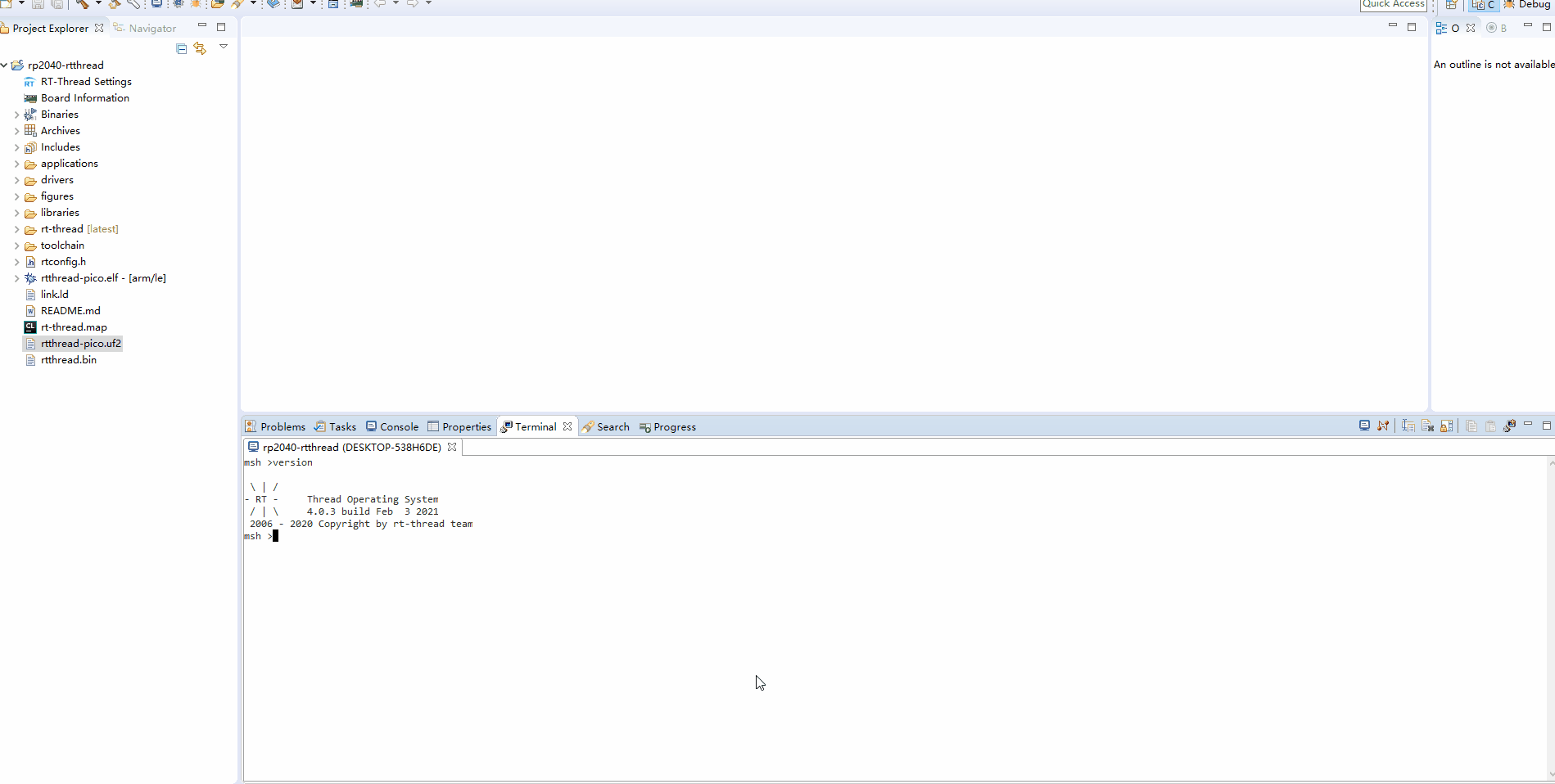

7. Communicate with PICO by Studio Serial Tool.

Image for post
Image for post
